Hi, I’m looking for a schematic for the VHT V-Drive pedal. Is that something that is available somewhere? Thank you.
The vdrive is made by axl, who bought the vht name in 2009. Fryette didn’t have anything to do with vht products made after that time.
Sorry to necro this, but I traced it out because I was curious. It’s just a timmy with a unique power section that I haven’t traced yet because if you’re building one you can get more voltage with a charge pump, or just run it at 18v, and the variable-ness is kind of a gimmick IMHO and doesn’t change the sound as much as you’d expect. I just keep it all the way up.

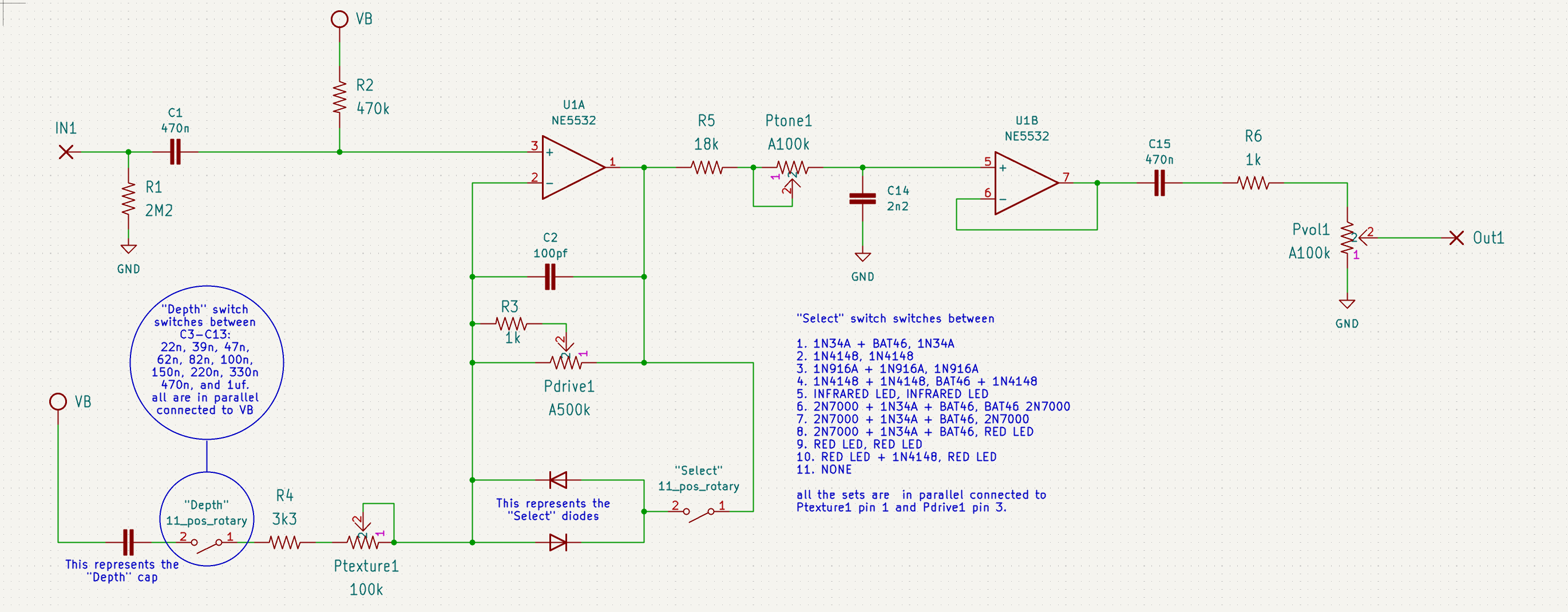

Here is the schematic:
We don’t encourage posting engineering info, but as Kelly said, this is not a Fryette product. To avoid searching engine confusion, I’m going to remove this thread, as it has no place on the site. No offence to anyone, just bookkeeping.
