UAFX Lion and Power Station PS-2

Stage & Studio Power Station PS-2
1

Hello everyone,
I hope you’re doing well. A question, please : what is the best way to connect the UAFX Lion pedal (using the cab simulation) and the Fryette Power Station PS-2a (older version)? Line In ? The effects loop return ? Something else ? Thanks !

2

Hey Saul,

Feel free to drop a few screenshots of the pedal connections and we can figure out how to integrate with the PS-2A. But sounds like it needs a line level connection.

3

Hi dan,

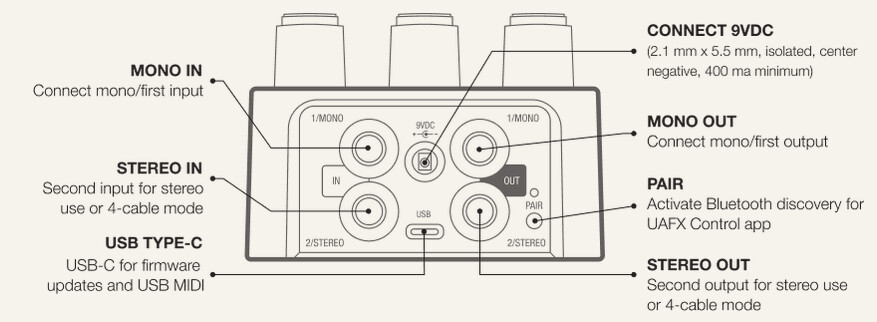

Thanks for your help. Here is what you asked for :

image877×322 56.1 KB

Thanks !

4

So it’s an amp in a pedal. I would consider self-attenuation mode for this and then take the line out of the Power Station. But Line In is fine, it is also pre FX loop so you can use this without FX using the Power Station.

5

I think you just want line in, I have a strymon iridium and when I use it, that is where I put it. However, I have a two notes cab m+ which I use for cab simulations and run that to a monitor. I run the speaker out into the two notes cab M. I am not sure you would want to run the cab sim into the power amp, but I don’t know. I haven’t tried.

Let us know how it goes
