Line Out of Cyclops to PS 100 on preamp section not working

Stage & Studio Cyclops
1

Hello,
just got cyclops for my PS 100 connected everything as in manuals, my PS 100 connected to mixing console through the XLR
When i switch to amp - the signal goes as before from both mixing console and cabinet
When switching to preamp - the signal is not going to mixing console anymore, only from cabinet
Please advise
thank you

2

1750405855949
17504058559491052×1000 105 KB

3

Hi Alex,

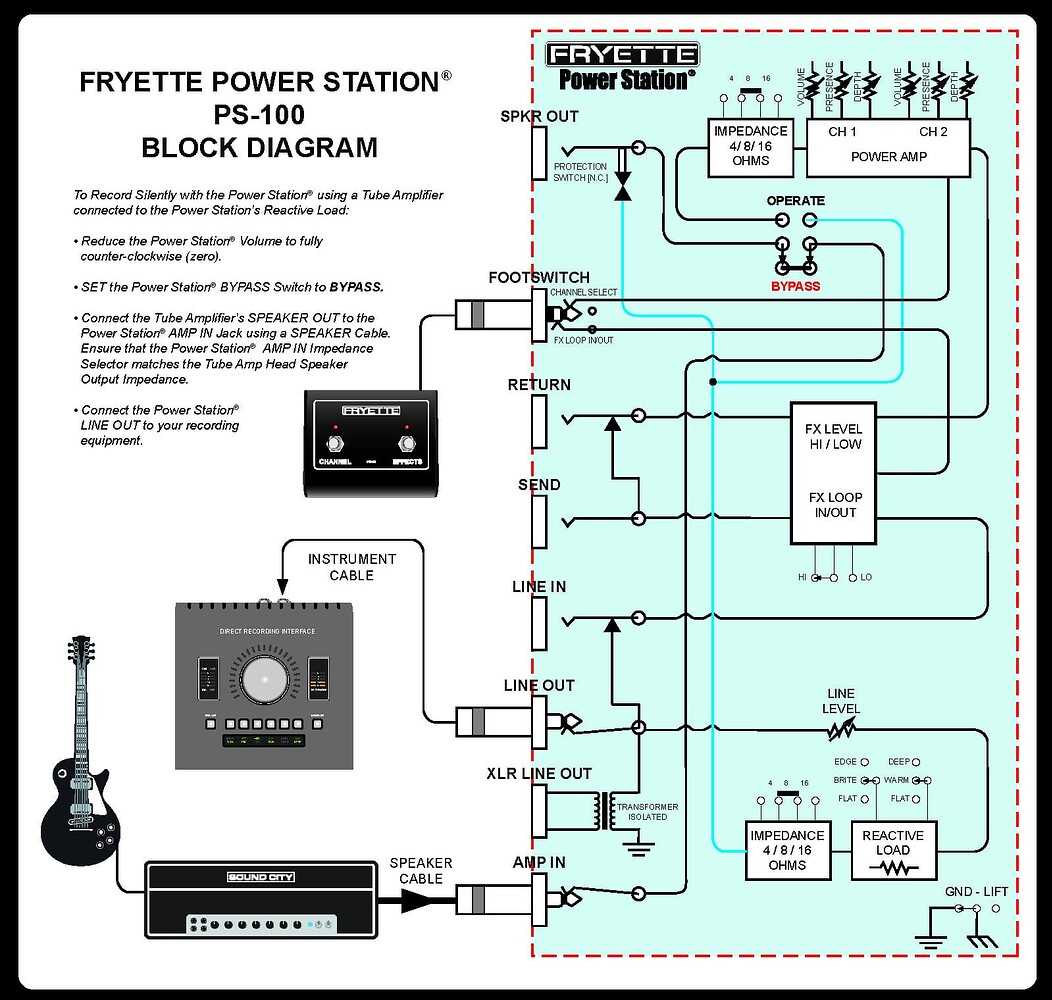

The Unbalanced line out and XLR line out are before the line in that your preamp is using. It’s the load line output of the connected amplifier. Because of this, your preamp’s sound will not come through the line out. Stehensawall posted the block diagram. It will show you what’s going on and where. Thanks for that Stephensawall.

I hope that helps.

Thank You,

Terry

1 Like
4

Thank you!

So there is a way to connect it differently or the only way to record the preamps through the power amp of ps100 using cyclops is microphone?

Thank you in advance

5

PL-IR would be a helpful unit if your looking for a line out with or without IR’s.

I hope that helps.

Thank You,

Terry
