Amp/Power Station/GPDI-IR

Stage & Studio Valvulator GPDI/IR
1

1750488774423
17504887744231237×506 47 KB

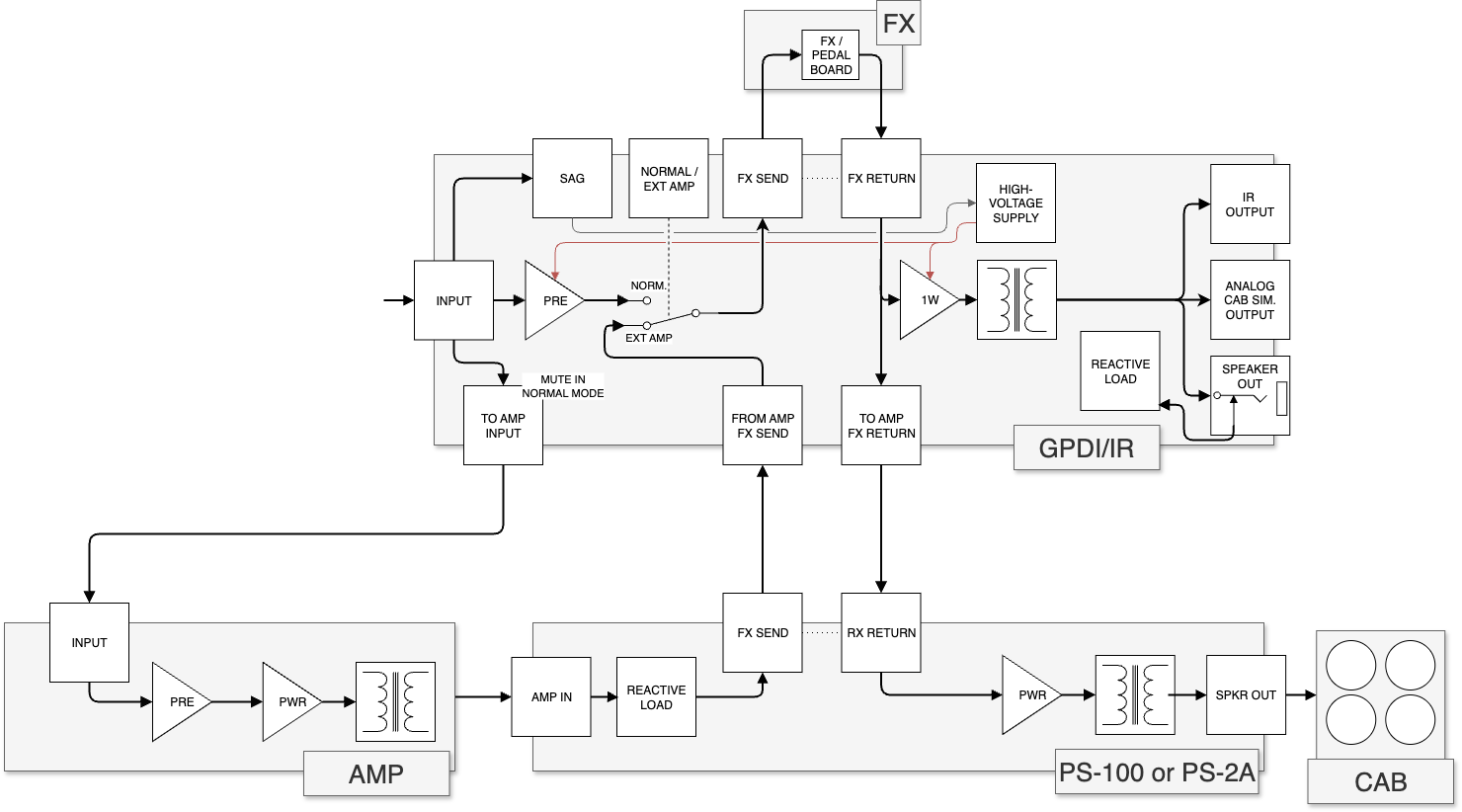

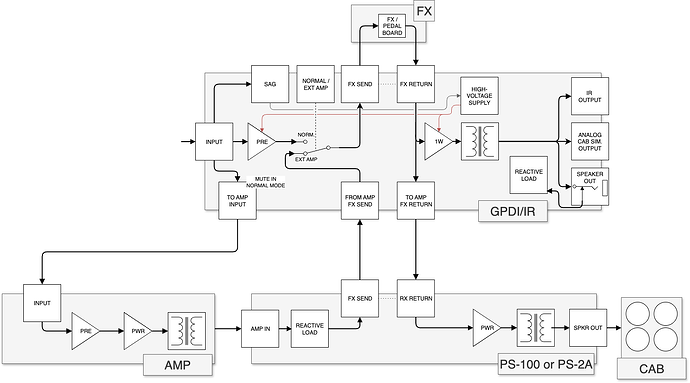

I want to know if I can add the PS to this diagram ?
I want the PS connected to the amp usual method.
Change the GPDI-IR connected to the amp effects loop and connect it to the PS effects loop.
What outputs are going to work wired this way on the PS and GPDI-IR ?

2

Hi Stephensawall,

I would recommend setting it up per the manuals in this instance. Meaning, follow the diagram you posted for the GPDI/IR, and then follow the diagram for the Power Station. This will give you both preamp sections through your amplifiers power section then out to the Power Station for its functions. Sometimes there is no trick to it. Just follow the manuals for the two products.

Thank You,

Terry

3

Thank you Terry.

If the amp has no effects loop can I use the PS effects loop connected to the GPDI-IR To Amp Fx Return and From Amp Fx Send ?

4

Hi Stephen,

I’m in the process of updating these flow diagrams. Doing it this week… please poke me if I forget :slight_smile:

2 Likes
5

Poke

Just kidding. I wanted to ask you if you could represent the sidechain trigerring the sag function. I understand it is taken right off of the input and applied post effet return to the 1W amp (?). I am just trying to picture/understand how to work out the 2 “sags” if the external amp is a Syn-2 + PS2.

1 Like
6

:face_with_spiral_eyes:

OK! will do.

1 Like
