Hi everyone,
Is there a way to take the post-FX loop sound and send it to the DAW?
Thank you
If you have your amp connected to the PS-2, this is exactly what the PS-2 Line Out does (either unbalanced 1/4-inch jack or the balanced XLR).

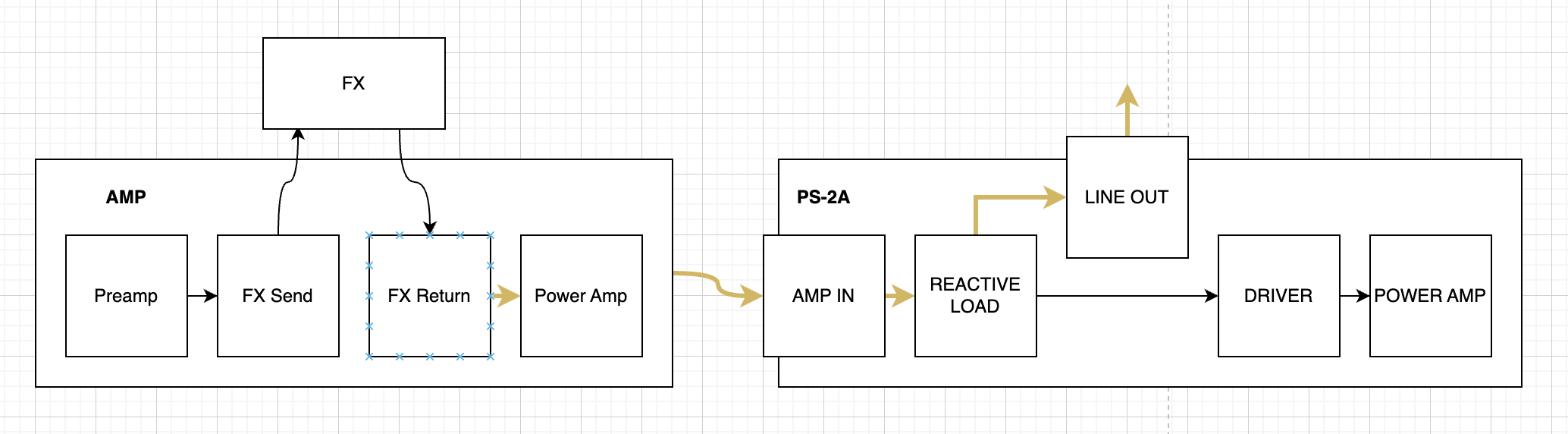

In your case the signal path is something like this:
The PS-2A is Line Out is the post-FX loop sound padded down to line level rather than speaker level. It also includes the reactive interactions between your amps’ power amp the Power Station reactive load.
Yes, this is correct if you’re using the amp’s effects loop. But I use the Fryette effects loop because my amp doesn’t have one.
No, is the short answer because you must close the FX loop by connecting back to the PS-2A FX return.
The only way is with a signal splitter as the last item in your FX chain. One output connects to the PS-2A FX return and the other to the DAW.
